The Importance of Hydronic Piping in Data Center Cooling Systems

In the high-stakes world of data center infrastructure, the server is the heart, but the hydronic piping system is the circulatory system. As chips get hotter and densities climb, the reliance on water—and other cooling fluids like refrigerant—to whisk away heat has never been more critical. However, moving thousands of gallons of fluid through a room filled with multimillion-dollar electronics isn’t just a system design and engineering challenge; it is a regulatory one.

Installing hydronic piping is far more than connecting tubes. It is an exercise in risk management. A single failed joint or a misinterpreted code can lead to catastrophic leaks, downtime, or a failure to obtain an occupancy permit. To build a resilient facility, you must navigate a complex web of international, national, and local codes that dictate how these pipes are designed, joined, and maintained.

The Backbone of the Modern Data Center: Why Hydronic Piping Matters

The transition from air-cooled “raised floor” environments to high-density liquid cooling, often utilizing high-efficiency chillers and cooling towers, is no longer a future trend—it is the current standard. Hydronic piping is the backbone of this shift because water is roughly 3,500 times more effective at heat transfer than air. This efficiency, often facilitated by advanced heat exchangers and fan coils, enables data centers to achieve lower Power Usage Effectiveness (PUE) ratings and reduced operating costs. Still, it also heightens the demands on the mechanical infrastructure.

If a pipe fails in a commercial office building, you might get a wet carpet. If a pipe fails in a data center, you risk a “thermal runaway” event or an electrical short that can take down global services. This is why the industry treats hydronic piping, including supply and return piping, and its associated distribution systems with the same gravity as high-pressure steam or volatile gas lines. The codes we follow are the guardrails that ensure this lifeblood of the data center remains contained and controlled.

Navigating the Regulatory Landscape: Which Codes Govern Your Project?

When you begin a project, you quickly realize that there isn’t one single “Book of Data Center Piping.” Instead, you are looking at a layered hierarchy of authorities. Understanding this hierarchy is the difference between a smooth inspection and a costly teardown.

The Hierarchy of Standards and Regulations

At the top of the pyramid are Model Codes like the International Mechanical Code (IMC) and the Uniform Mechanical Code (UMC). These provide the legal framework adopted by states and municipalities. Below are Consensus Standards from organizations such as ASME, ASHRAE, and CSA that provide the technical “how-to.” Finally, there are Application-Specific Standards, such as those from the NFPA, that focus on safety and fire prevention.

Your local Authority Having Jurisdiction (AHJ) is the ultimate arbiter. They decide which version of these codes applies to your specific GPS coordinates. As a mentor would tell you: always check the local amendments first, because cities like Chicago and New York often have stricter requirements than the base national code.

The Role of ASME B31.9: Building Services Piping

The American Society of Mechanical Engineers (ASME) publishes the B31 series, the “Bible” of pressure piping. While B31.1 covers high-pressure power plants, data centers typically fall under ASME B31.9: Building Services Piping. This code is specifically designed for the pressures and temperatures found in HVAC, boilers, hydronic heating systems, and cooling systems.

Material Requirements and Pressure Ratings

ASME B31.9 dictates what your piping materials, including elbows and tees, can be made of and how thick their walls must be. Whether you are using Schedule 40 carbon steel, Type L copper, or advanced plastic pipes such as PP-RCT, the code provides allowable stress values. In a data center, where chilled water loops might experience significant static head in multi-story buildings, ensuring that all system components are rated for the maximum possible surge pressure is a non-negotiable safety requirement.

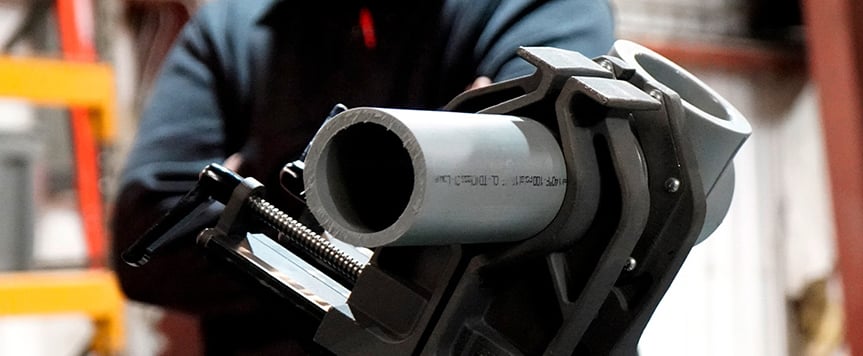

Standardized Welding and Joining Procedures

A pipe is only as strong as its weakest joint. ASME B31.9 mandates that any welding or brazing be performed by qualified personnel using documented Welding Procedure Specifications (WPS). This isn’t just bureaucracy; it’s about traceability. If a joint fails three years from now, the facility owner needs to know it was joined using a process proven to withstand the vibration and thermal expansion cycles common in high-load cooling loops.

ASHRAE Standards: The Gold Standard for Efficiency and Thermal Management

If ASME tells you how to keep the water in the pipe, ASHRAE tells you how to use that water to keep the servers happy. The American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) sets the benchmarks for data center performance.

ASHRAE 90.4: Energy Standard for Data Centers

Unlike its cousin 90.1 (which covers general buildings), ASHRAE 90.4 is a performance-based standard tailored for data centers. It focuses on the Mechanical Load Component (MLC). For hydronic piping, this means the design must minimize friction losses and pressure drops to optimize pump energy use. You cannot simply oversize pumps or circulators to compensate for poor piping layouts, such as inefficient direct-return or reverse-return systems; the code requires a level of hydraulic efficiency that forces designers to be precise in pipe sizing and valve selection.

ASHRAE TC 9.9 and Thermal Guidelines

Technical Committee 9.9 is perhaps the most influential group in data center cooling, often guiding heat pump integration, heat loss, and thermal management. They define the “Envelopes” (Recommended vs. Allowable temperatures). Their guidelines dictate the temperature of the water flowing through your hydronic pipes. This is crucial because, as we move toward “Warm Water Cooling,” the delta-T (temperature difference) of the hot water changes, impacting the flow rates and, consequently, the physical size of the piping required.

Universal Mechanical Codes (UPC/UMC)

In many jurisdictions, the Uniform Mechanical Code (UMC) is the law of the land. It provides the granular details that ASME might gloss over, particularly regarding how the system interacts with the building’s physical structure.

State and Local Variations to the Uniform Mechanical Code

It is a common trap to assume that a design used in Virginia will work in California. The UMC is frequently modified at the state level. For instance, California’s Title 24 adds rigorous energy-efficiency layers, while other states may have specific requirements for the use of PEX tubing or other non-metallic piping in commercial plenums.

Impact on Pipe Support and Seismic Bracing Requirements

Data centers are often located in seismic zones. The UMC, in conjunction with ASCE 7, dictates how hydronic pipes must be braced. You aren’t just hanging pipes; you are engineering a system that can sway during an earthquake without shearing off the cooling heads. This involves complex calculations for “slack” in flexible connectors and the spacing of sway braces—details that, if ignored, can lead to a red tag from the inspector.

International Mechanical Code (IMC) Chapter 12: Hydronic Piping

For those working in regions that follow the International Code Council (ICC) family of codes, IMC Chapter 12 is your roadmap. It is a comprehensive checklist for the system’s physical installation.

Compliance Checklist for Pipe Sizing and Installation

Chapter 12 covers everything from the required clearance around valves and air vents to the type of hangers used. One critical area often overlooked is the requirement for “expansion and contraction.” Steel pipes grow when they get warm and shrink when they get cold, often requiring an expansion tank or air separator to manage the resulting pressure changes. The IMC requires that hydronic systems be installed so that this movement is allowed without stressing the joints. In a data center with long distribution piping runs, failing to include expansion loops or offsets is a recipe for a structural failure.

Insulation Requirements and Condensation Control

In a data center, condensation is the enemy. Chilled water pipes are often well below the room’s dew point. IMC Section 1204 mandates specific insulation thicknesses to prevent sweating. But beyond just “having” insulation, the code requires a continuous vapor barrier. If moisture gets under the insulation, it can lead to Corrosion Under Insulation (CUI), which can silently eat through a pipe over a decade.

NFPA 75 and 76: Fire Protection for Information Technology Equipment

Hydronic piping doesn’t exist in a vacuum; it lives in a room filled with fire suppression systems. The National Fire Protection Association (NFPA) provides the rules for how these systems coexist.

Hydronic Piping in the Context of Fire Safety

NFPA 75 is the standard for the protection of IT equipment. It emphasizes that any piping in the “white space” (the server room) must be essential to the equipment’s operation. You cannot run general building drains or unrelated domestic water lines through the data hall. If the hydronic piping is for cooling the servers, it’s allowed, but the entire loop system must be monitored.

Leak Detection and Containment Regulations

NFPA standards and insurance requirements often mandate leak detection systems beneath hydronic piping. This usually involves “sensing cables” laid along the pipe path or in the floor trenches. The goal is simple: if a drop of water escapes, the system must alert the Building Management System (BMS) before that drop becomes a flood.

Best Practices for Specifying and Installing Hydronic Systems

Codes provide the minimum floor for safety, but “best practice” is about longevity and ROI.

Material Choice Matters

One of the most impactful decisions in data center piping is choosing the right materials and welded joint design for each part of the system. While other joining methods, such as grooved mechanical couplings, are often used elsewhere in the industry, mission‑critical environments still rely heavily on properly specified welded carbon steel or copper to meet demanding pressure, temperature, and uptime requirements. Your welding procedures, filler metals, and pipe schedules must be engineered as a single, integrated system so every joint can tolerate thermal expansion, vibration, and routine maintenance without fatigue. To protect long‑term reliability, valve bodies, gasketed components, and any dissimilar metals in the loop should also be checked for chemical compatibility with the glycol mix or other coolant to help prevent corrosion and slow, costly leaks over time.

Testing, Balancing, and Commissioning (Cx) Requirements

Before a single server is racked, the hydronic system must be put through the wringer. This involves hydrostatic pressure testing (typically at 1.5× the working pressure) to detect leaks. Following this, the system must be “balanced.” Testing, Adjusting, and Balancing (TAB) ensures that the server rack at the end of the line gets the same pressure (typically at 1.5× the working pressure) to detect flow rate as the rack closest to the pump systems. Without proper TAB, you’ll have “hot spots” in your data center, regardless of how much total cooling capacity you have.

Future-Proofing Your Cooling Infrastructure

The industry is moving toward “Direct-to-Chip” and “Immersion Cooling.” This changes the hydronic landscape significantly.

The Shift Toward Liquid-to-Chip Cooling and New Standards

In these systems, the water comes within millimeters of the silicon. This requires “Secondary Fluid Quality” standards that go beyond traditional HVAC codes. You are no longer just dealing with “chilled water”; you are dealing with deionized water or dielectric fluids. New standards are currently being drafted to address the material compatibility and filtration requirements for these micro-hydronic loops. If you are building today, you must design your main headers to transition to these higher-density cooling methods tomorrow.

Conclusion: Integrating Compliance with Performance

Navigating the codes of hydronic piping can feel like a chore, but these regulations are the foundation of data center reliability. By adhering to ASME B31.9 for structural integrity, ASHRAE for thermal efficiency, and the IMC/UMC for installation precision, you create a facility that is not only “to code” but is also a high-performance asset.

In the end, the goal of a data center cooling professional—much like those working with hydronic heating and radiators—is to make the infrastructure invisible. When the hydronic piping is installed correctly—adhering to every regulatory nuance—it quietly and efficiently supports the digital world, allowing the servers to hum along without the risk of a single drop of water ever reaching a circuit board. Compliance isn’t just a checkbox; it is the ultimate insurance policy for the digital age.
